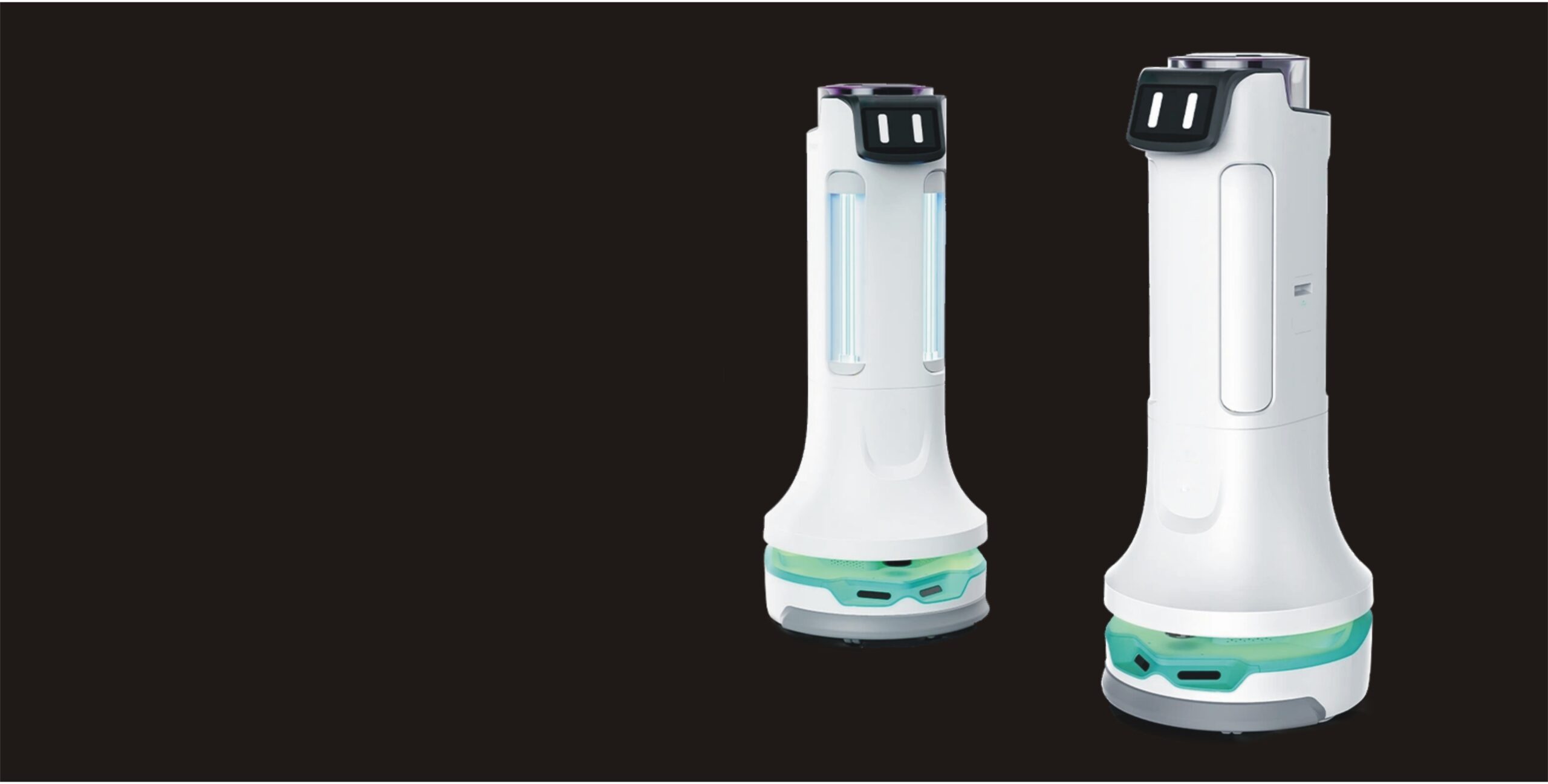

UV-C & SPRAY Combined

Disinfection Robot

MedicalBot

The global COVID-19 pandemic has challenged the traditional methods of disinfections, and contactless operations are becoming crucial part of our normal life. Using UV-C light disinfection combined with spray disinfection robot minimizes the risk of cross infection and improves sanitary condition for indoor environments.

AMASTEC’s disinfection robots are cost-effective and reliable solution for healthcare centers, hospitals, schools, airports, fitness centers, government offices and businesses.

Features

2L/H Ultrasonic Dry Mist Disinfection

188μW/cm² UV-C Disinfection

Max 6H Disinfection Time

15L Reservoir Capacity

360° Sterilization

Boil-dry Protection and Low-level Warning

Automatic Localization and Navigation System

icon_autorecharge

Automatic Recharging

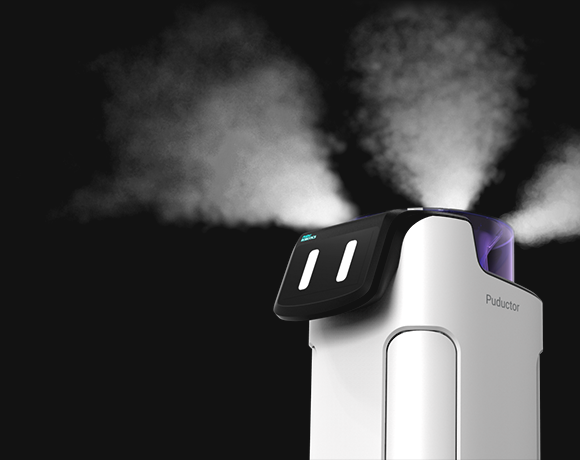

Ultrasonic Dry Mist Disinfection

≤10μm dry disinfectant particles

 Ensure killing of 99.9999% of bacteria, and allow disinfection of whole room without leaving any dead corner.

Four dry mist outputs

adjustable according to different application scenarios to achieve excellent disinfection effect

15L large reservoir capacity

Customers do not need to replenish the disinfectant solution frequently.

Max. atomization rate is 2.0L/h.

According to the different application scenarios, the dry mist output can be conveniently adjusted to achieve excellent disinfection effect.

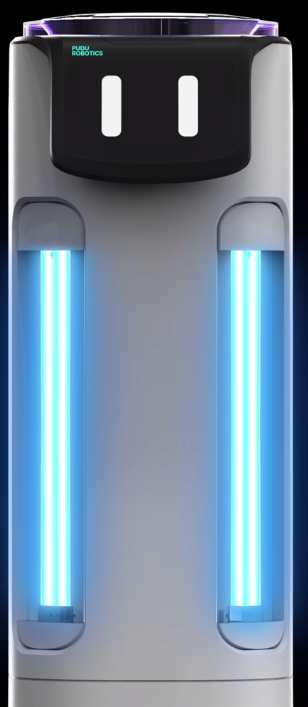

Ultraviolet C Disinfection

99.99% Disinfection Rate

Equipped with 4 x 36w ozone-free UV lamp, achieving an industry leading ultraviolet illumination of 188μW/cm² at 1 meter. The UV-C lamp is highly effective against most types of bacteria and viruses, securing a 99.99% disinfection rate.

Intelligent UV-C Lamp Protector

Equipped with 4 x 36w ozone-free UV lamp, achieving an industry leading ultraviolet illumination of 188μW/cm² at 1 meter. The UV-C lamp is highly effective against most types of bacteria and viruses, securing a 99.99% disinfection rate.

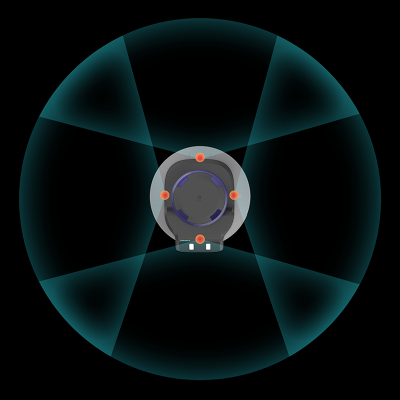

Motion Sensor

Powerful disinfection with 360-degree UV-C light coverage

The robot is equipped with millimeter wave motion sensor, and it will shut down the UV lamps and spraying automatically if it detects a person within 3 meters.

Automatic Recharging

The total battery capacity is 51.2Ah, for a maximum disinfection time of up to 6h, which can support the disinfection of 12-15 rooms (20㎡/room). It is equipped with a docking station to make sure that the robot is fully charged and ready for the next task, time saving as it requires no involvement from your staff.

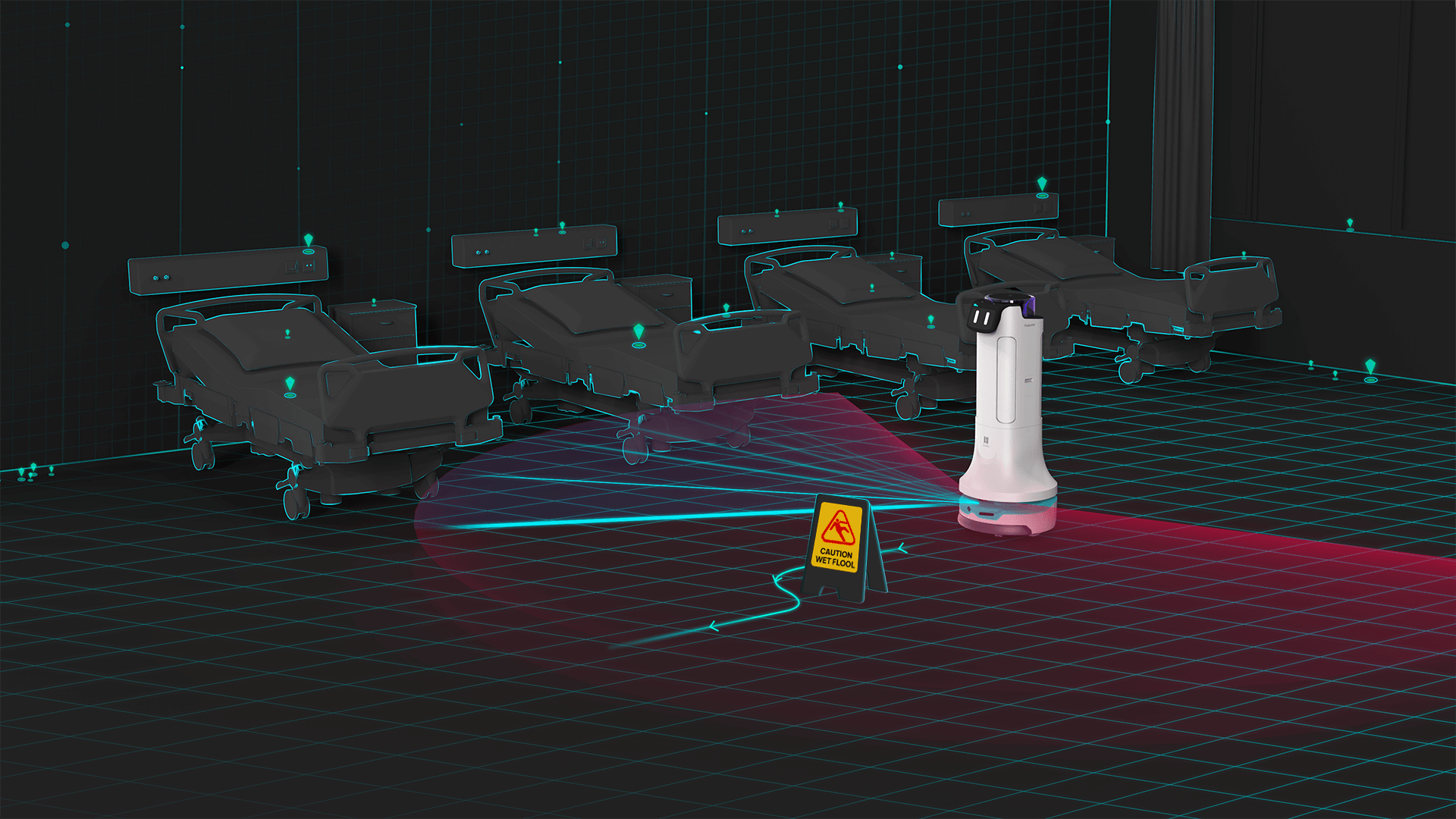

Laser SLAM
Autonomous Solution

The Laser SLAM positioning and navigation technology helps to achieve stable operations in complex environment with high reliability. It can freely move in a 100,000m² space with detection range up to 40m, and real-time positioning error is less than 10cm.

Intelligent 3D
Obstacle Avoidance

Latest 3D obstacle avoidance technology provides faster perception to detect obstacles accurately, and it can stop within a reaction time of 0.5 seconds. Equipped with INTEL REALSENSE RGBD camera.

Specifications

Items

Specifications

Machine Dimension

565*537*1290 mm

Machine Weight

57kg

Battery Capacity

ABS/Aviation-grade aluminum alloy

Reservoir Capacity

4.5 H

Irradiation Intensity at one meter distance

12-24H (Replaceable Battery)

Effective Disinfection distance

Speed: 0.5-1.2m/s (Adjustable) | Climbing angle: ≤ 5°

Disinfection Time

Max 40kg,10kg/tray

Cruise Speed

Marker Positioning: Supports a maximum height of 8 meters (optional high-level code) Laser Positioning: Code-free with no height restrictions

Disinfectant Solution

Max 40kg,10kg/tray

Working Voltage

57kg

Motion Sensor

Max 40kg,10kg/tray

UV-C Lamp Protector

57kg

Solution Inlet& Outlet

Max 40kg,10kg/tray

Max Climbing Angle

5
