Electric Track Vehicle (ETV)

Electric Track Vehicle (ETV) is an efficient transport system that empowers hospital and healthcare facility to automate the transportation of mid-size materials within your hospital, enabling your healthcare staff to focus on providing patient care.

Advantages

Fast, secure and gentle transport of medical goods

Access limitations and user authentication significantly increase transaction safety and security

Increase productivity and reduce cost. Achieve fast ROI within 2-3 years.

Monitoring of carriers and transported items through track & trace function

By reducing manual delivery, staff can concentrate more on patients. Improve hygiene in hospital.

Consistent, Fast and In-time availability of items.

Features

Smart Vehicle

  • Large loading capacity container up to 30kg, which is twice bigger than the other similar products.
  • Equipped with adjustable cargo retaining board and test tube rack.
  • Self-leveling swivel basket that ensure liquids remain horizontal during transport.
  • Mechanical lock and E- Password ensure the object security.
  • Front and rear infrared sensors to avoid collision risk.

Energy Efficient

  • Advance HPS2.0 Hybrid Power Double Drive technology more stable and energy saving.
  • In case of power failure, the vehicles will
  • automatically switch to “battery mode” without power interruption.
  • Enables a 25% lower energy consumption.
  • Environment friendly and sustainable transport solution.

Antimicrobial Design

  • Antimicrobial ABS material for body of the vehicle that can greatly reduce the risk of cross infection.
  • Each container is equipped with UV-C radiation disinfection.
  • Effectively meet the hygienic standards of modern hospitals.

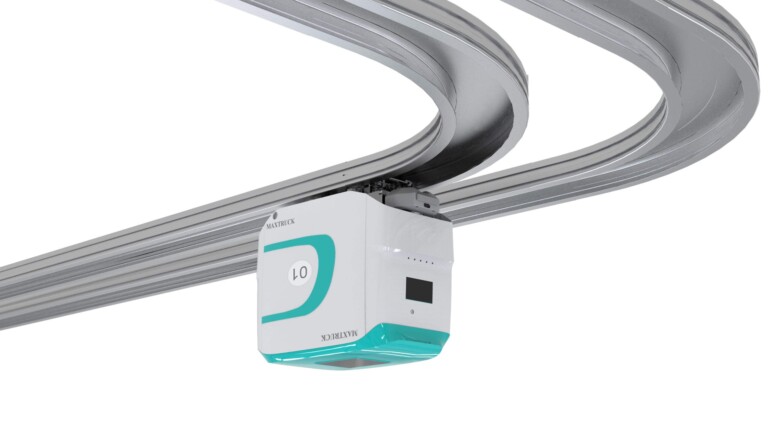

Track Network

  • Use of high-strength Aluminum alloy rail tracks rather than copper tracks reduce 34% travel noise.
  • Anodic oxide surface finish make it decorative, durable and corrosion-resistant.

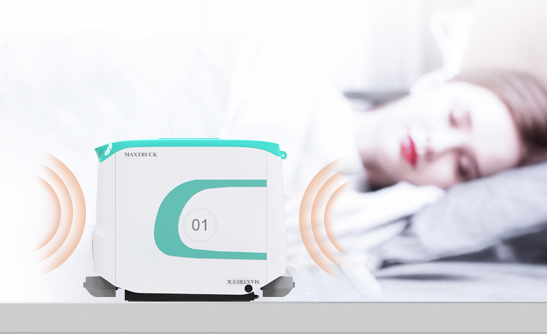

  • More silent and comfortable surrounding for patients to sleep.
  • Quiet transport, moving sound is below 50 decibels.
  • High flatness, durable and stable.
  • Tracks consist of horizontal, vertical and curved rails.

Energy Efficient

  • Equipped with 13.2 color LCD touch screen.
  • Audio & light (signal) indicator for arrival and departure.
  • One-key dispatch and one-key to recall if wrong sending.
  • User-friendly interface.

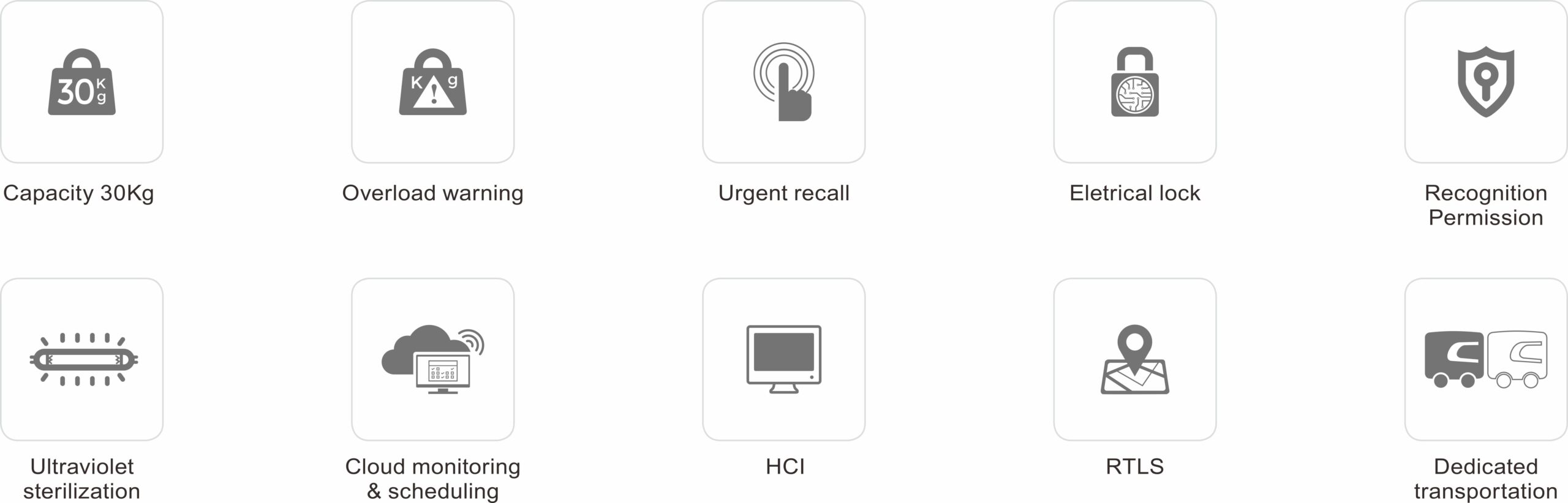

CORE FEATURES

Specifications

Items

Specifications

Payload

30 KG

Volume Capacity

46.53 L

Internal swivel box

6L, ≈ 180pcs test bar

Inner dimensions

L426 × W313 × H349 (mm)

Exterior dimensions

L602 × H344 × W481 (mm)

Horizontal speed

0.8 m/s

Vertical speed

0.4m/s

Disinfections methods

Ultraviolet (UVC) disinfection

Voltage Supply

DC 36V

Minimum opening size of shaft

550 × 800 (mm)
